Amplifier

SYRINCS sound system has a variety of different series of products, which can meet the different needs of various styles of slow shaking bars, performance bars, KTV private rooms, and various entertainment venues; At the same time, it can also provide complete product solutions for various professional sound reinforcement fields such as large and small conference rooms, multifunctional halls, public broadcasting, background music, and mobile stages.

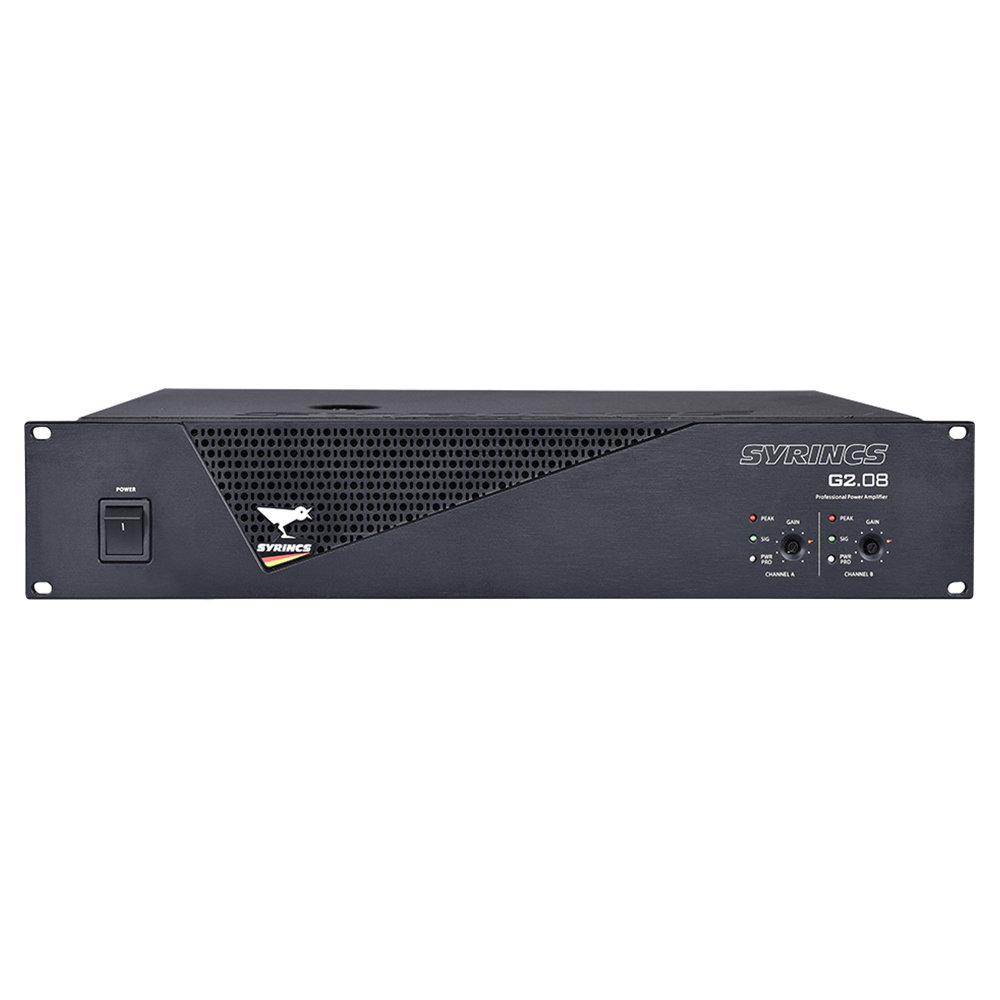

G2.08
Two channel amplifier

G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
G2.08-Two channel amplifier
1. Innovative amplification circuit, the whole machine ensures sound quality while significantly improving efficiency (the overall efficiency is nearly twice that of traditional design, more energy-efficient);
2. Unique voltage current temperature management system ensures more stable system operation;
3. Complete functional settings and model sequences to meet the needs of various application scenarios in the entertainment market.

Product Description

The G series power amplifier is a professional power amplifier specially launched by SYRINCS for the entertainment market, with exclusive tone tuning. The entire series adopts carefully designed fully balanced amplification circuits, resulting in sweet and powerful tones. The amplifier is equipped with a variety of functional settings and model sequences to meet the needs of various application scenarios in the entertainment market. The amplifier has a high power output, a wide frequency response range and a high signal-to-noise ratio, which can provide a stable and reliable sound reinforcement system for various entertainment venues. The amplifier is also equipped with a variety of protection functions, including over-temperature protection and short circuit protection. It can effectively protect the equipment from damage caused by improper use or external factors. In addition, the amplifier has a built-in cooling system, which can effectively dissipate heat generated during operation and ensure the stable operation of the equipment. The amplifier is suitable for various entertainment venues such as KTV, bars and clubs. It can provide high-quality sound reinforcement to enhance the atmosphere of the venue and improve the user experience.

G2.08
Two channel amplifier

Downloads

Send your inquiry

Dimensional drawing

Dimensional drawing

Technical specifications

Power
Stereo 8 Ω800W × 2
Stereo 4 Ω1100W × 2
Input sensitivity (3 gears optional) @8Ω, 1kHz, ±10% or ±1dB
0.775V0.73V
1V0.9V
32dB (40x gain)32dB
Total harmonic distortion <0.1% @ 8 Ω, 1kHz
Intermodulation distortion<0.5% @ 8 Ω, 60Hz/7kHz 4:1
Frequency response 20Hz-20kHz ± 2dB
Damping coefficient>200 @ 8 Ω, 100Hz
Signal to noise ratio>105dB @ 8 Ω, 1kHz, 32dB range, A-weighted

Physical specifications

Rated consumption current @ 1/8 maximum output power, 4 Ω5A
Input interfaceXLR x 2
Cascade outputXLR x 2
Power outputNL4 x 2
Rated power supply voltage220V~50Hz
Cooling method Dual Cooling Fan Controlled by Temperature
Environmental temperature Operating temperature -10 ℃~40 ℃ Storage and transportation temperature -25 ℃~80 ℃
Net weight13.7kg
Size89mm × 482mm × 279mm (including 304mm rack)
