Speaker

SYRINCS sound system has a variety of different series of products, which can meet the different needs of various styles of slow shaking bars, performance bars, KTV private rooms, and various entertainment venues; At the same time, it can also provide complete product solutions for various professional sound reinforcement fields such as large and small conference rooms, multifunctional halls, public broadcasting, background music, and mobile stages.

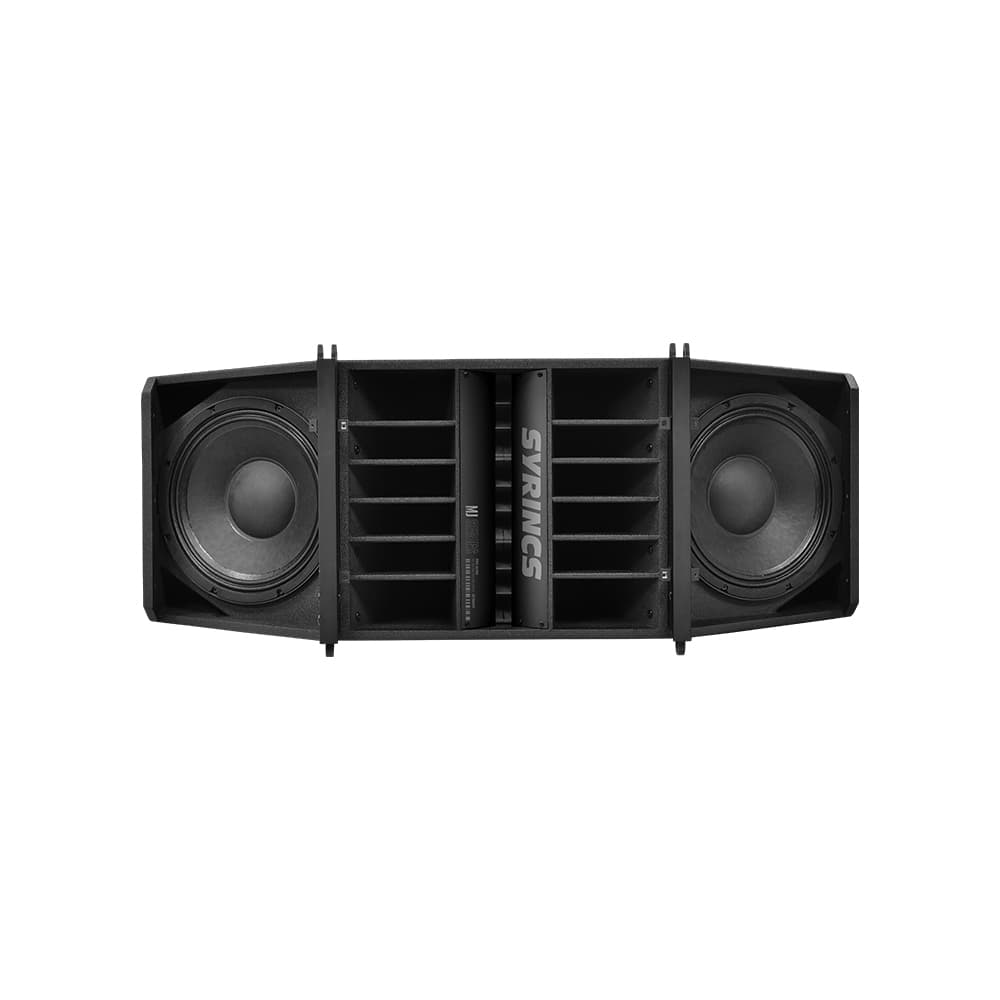

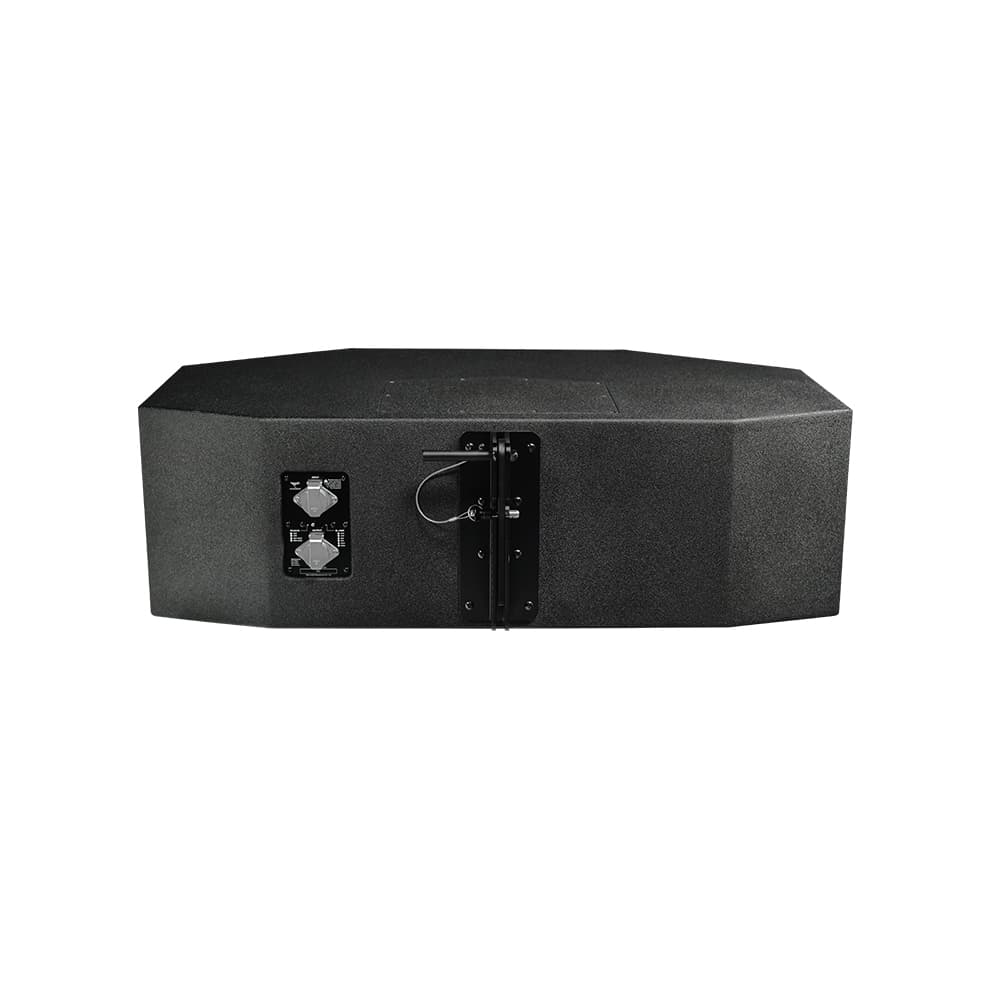

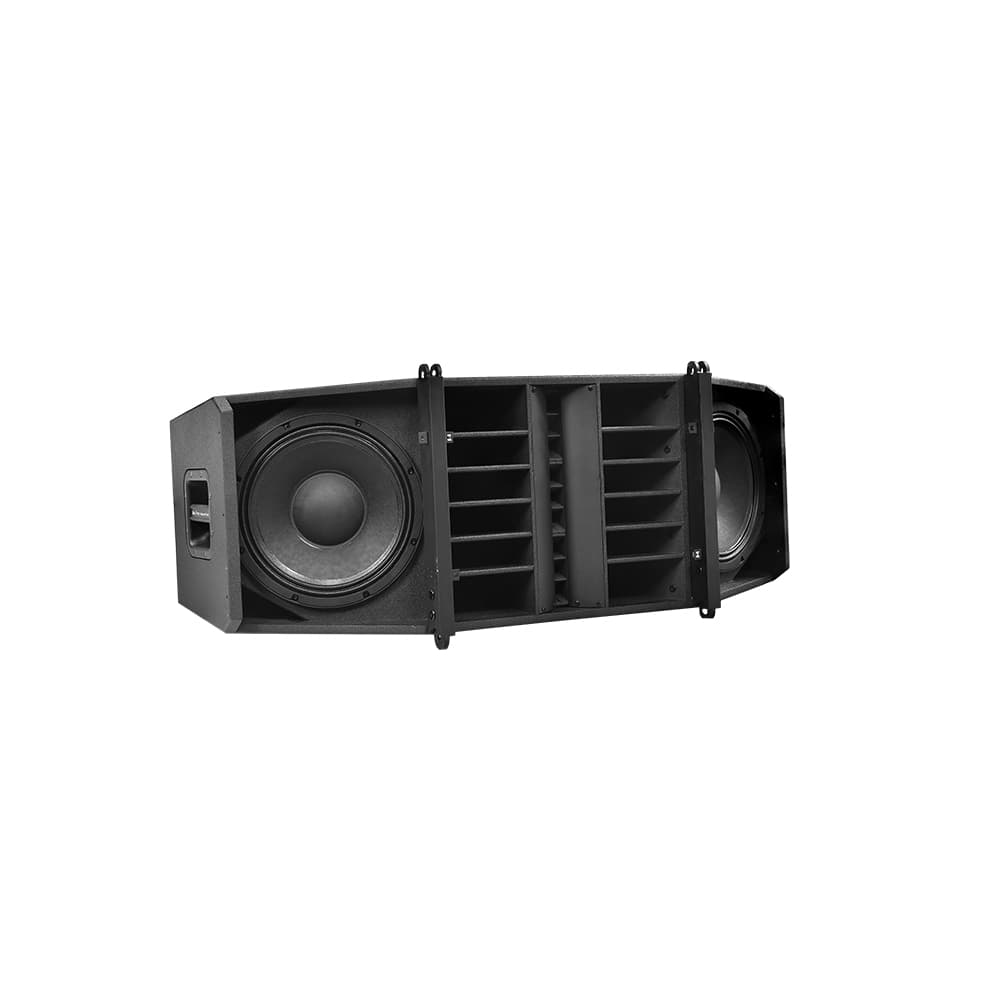

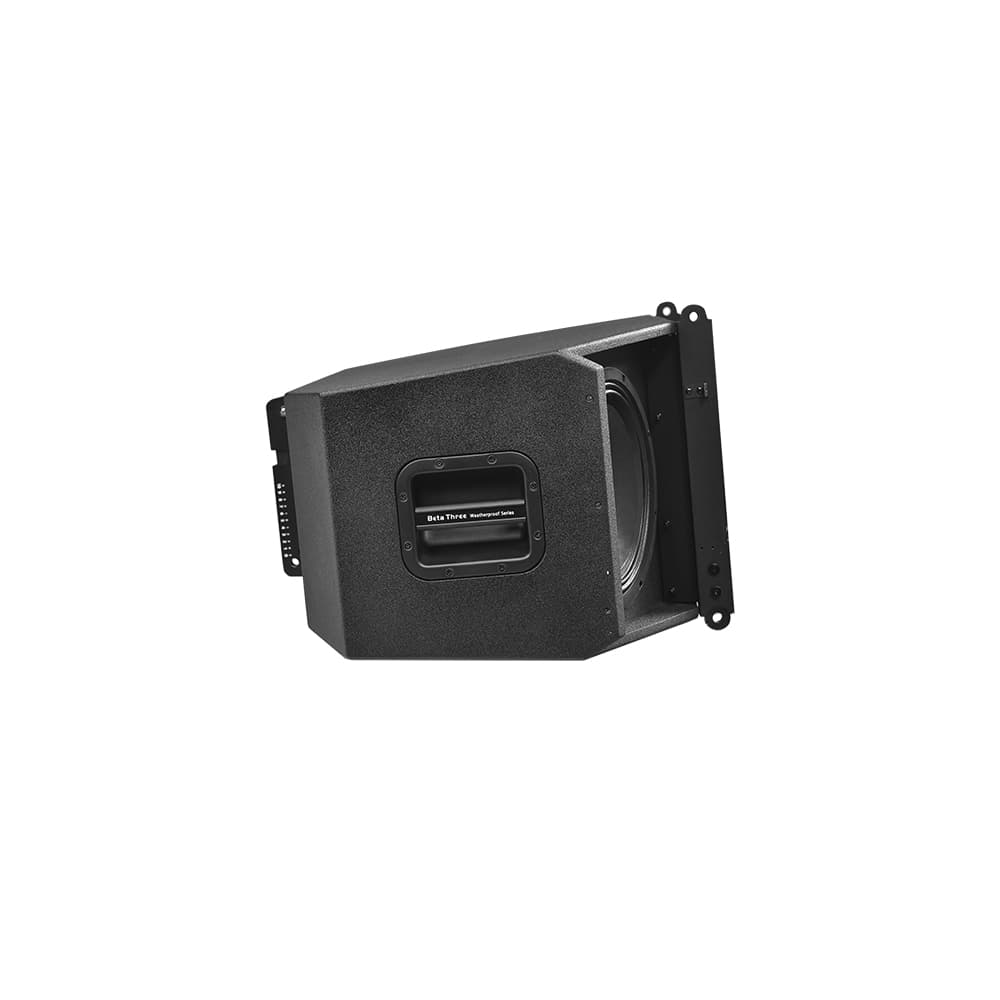

MJ1239
3-way dual 12 inch waterproof full frequency linear array speaker

MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
MJ1239-3-way dual 12 inch waterproof full frequency linear array speaker
The combination of dual 12 inch low-frequency and 1.75-inch high-frequency units provides high fidelity sound effects.
The rated power is 2000W, and the maximum can reach 8000W, meeting the needs of various scenarios.
15mm laminated board box with iron mesh, sturdy and durable.
Equipped with NL4 connectors and lifting kits, it can flexibly adapt to various scenarios.
Reasonable price, excellent performance, and value for money.

Product Description

Dual 12 inch low-frequency paired with dual coaxial mid to high frequency compression driver Accurate linear phase response brings perfect sound quality Vertical angle adjustment range:0 ° to 10 °, with an adjustment accuracy of 1 °, suitable for various venues Built in three-point hanging system, which can be conveniently and quickly hung or stacked for installation IP55 dustproof and waterproof certification

MJ1239
3-way dual 12 inch waterproof full frequency linear array speaker

Downloads

Send your inquiry

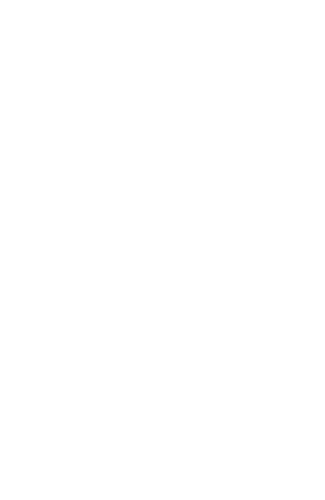

Dimensional drawing

Dimensional drawing

Technical specifications

Frequency Response(-3db)55Hz-20kHz
Rated Power(RMS)LF: 800W MF:400W HF: 150W
Max SPL @ 1mLF:129dB/135dB(PEAK) MF:136dB/142dB(PEAK) HF:134dB/140dB(PEAK)
Dispersion (H x V)Horizontal 100 °, vertically 0-10°(adjustable)
Sensitivity 1W @ 1mLF:100dB MF:110dB HF:113dB
Nominal Impedance (Ohm)LF:4 Ω MF:8 Ω HF:16 Ω

Physical specifications

BoxDual 12 inch Waterproof Linear Array Speaker
Woofer2 × 12 inch imported low frequency unit
MF unit4 × 6 inch imported mid frequency unit
Compression driver3 x 44 core inlet compression driver
Frequency division modeExternal two division:200Hz-250Hz
External tri-division:LF:200Hz-250Hz HF:2.5kHz-3.5kHz
Cabinet/Case MaterialImport laminate board
Box surface treatmentBlack polyimide spray
GrilleBlack powder spraying
Connector2 x NL4
Optional AccessoriesLifting kit
Dimensions(W x D x H)1100 × 659 × 452mm
Package Dimensions(W x D x H):1220 × 740 × 530mm
Net weight56.5kg
Gross weight62kg
