2-wayfullrange passive speakerfeature
Computer simulated design 2-way horn fullrange speake

Product Description

SH High-Pressure Horn Series Syrincs Hi entertainment system is a full-range horn-loaded design for entertainment sound reinforcement. Its horn-loaded structure delivers smoother sound wave output, explosive dynamic energy, and extended projection distance. The Syrincs Hi system features crisp, transparent, and responsive high frequencies, while its mid-low frequencies boast millisecond-level response speed that captures the intensity and rhythm of music. Its bass units demonstrate exceptional low-frequency performance, delivering high dynamic range, powerful output, low distortion, and controllable directivity – ensuring authentic, distinguishable audio reproduction. Even amidst thunderous music, conversations remain crystal clear.

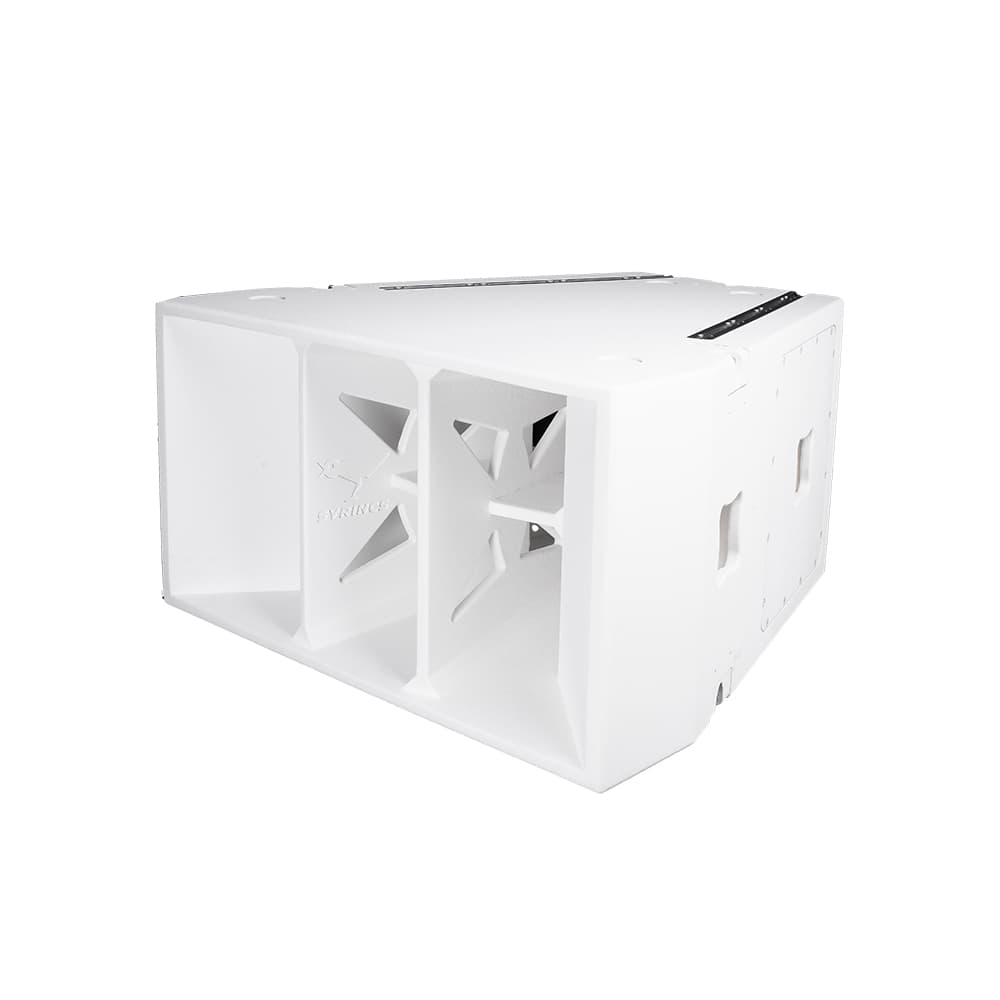

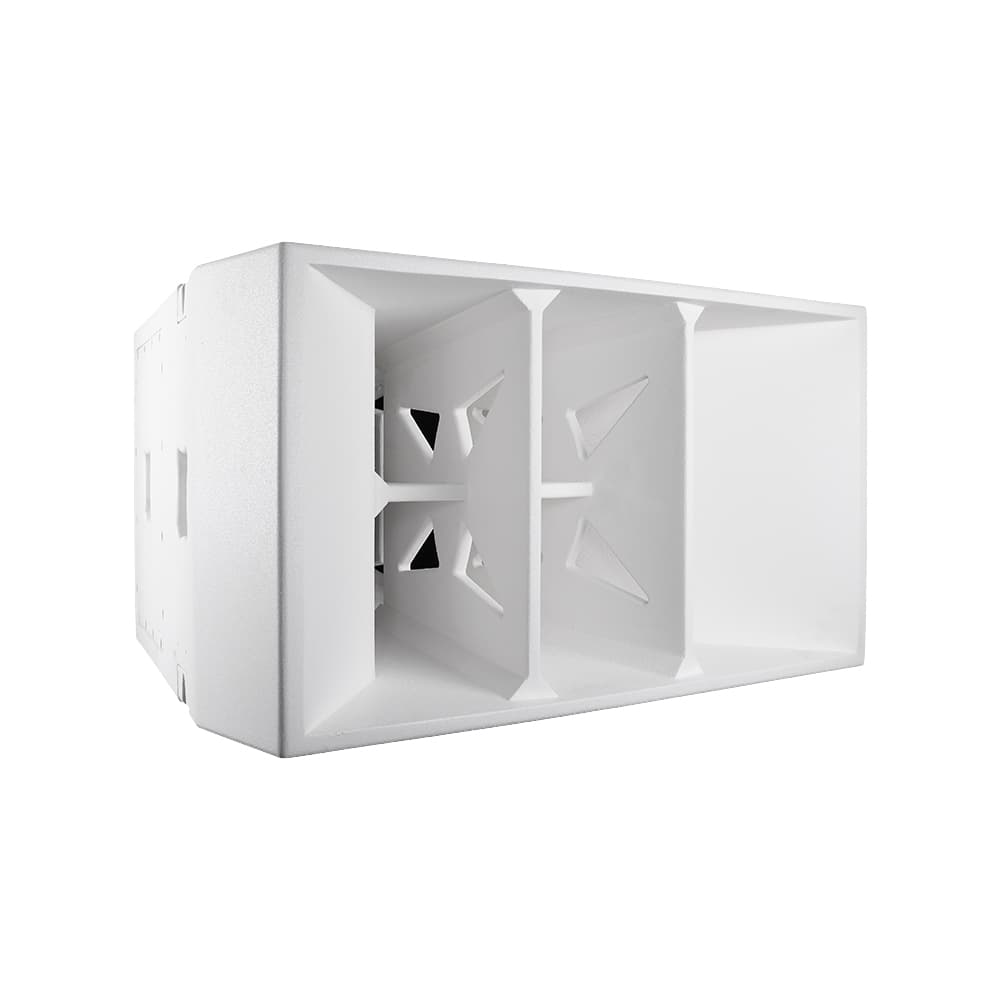

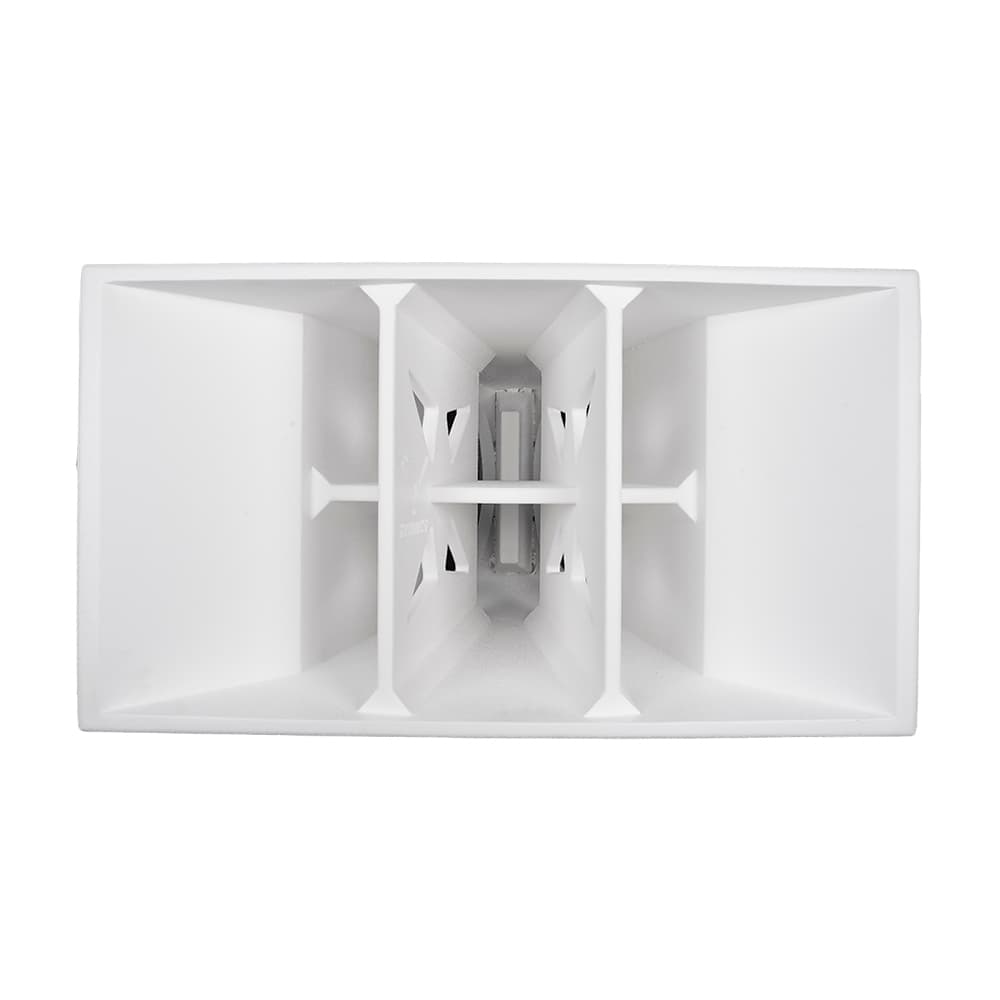

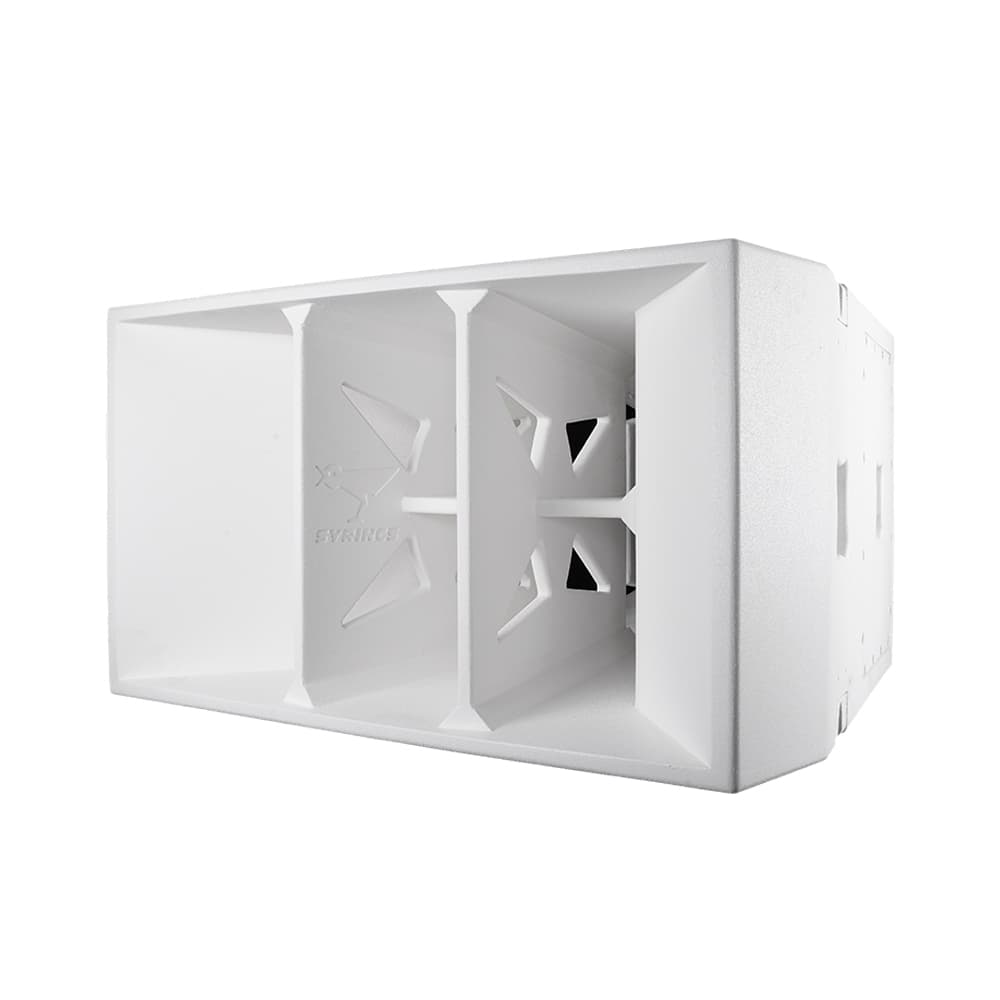

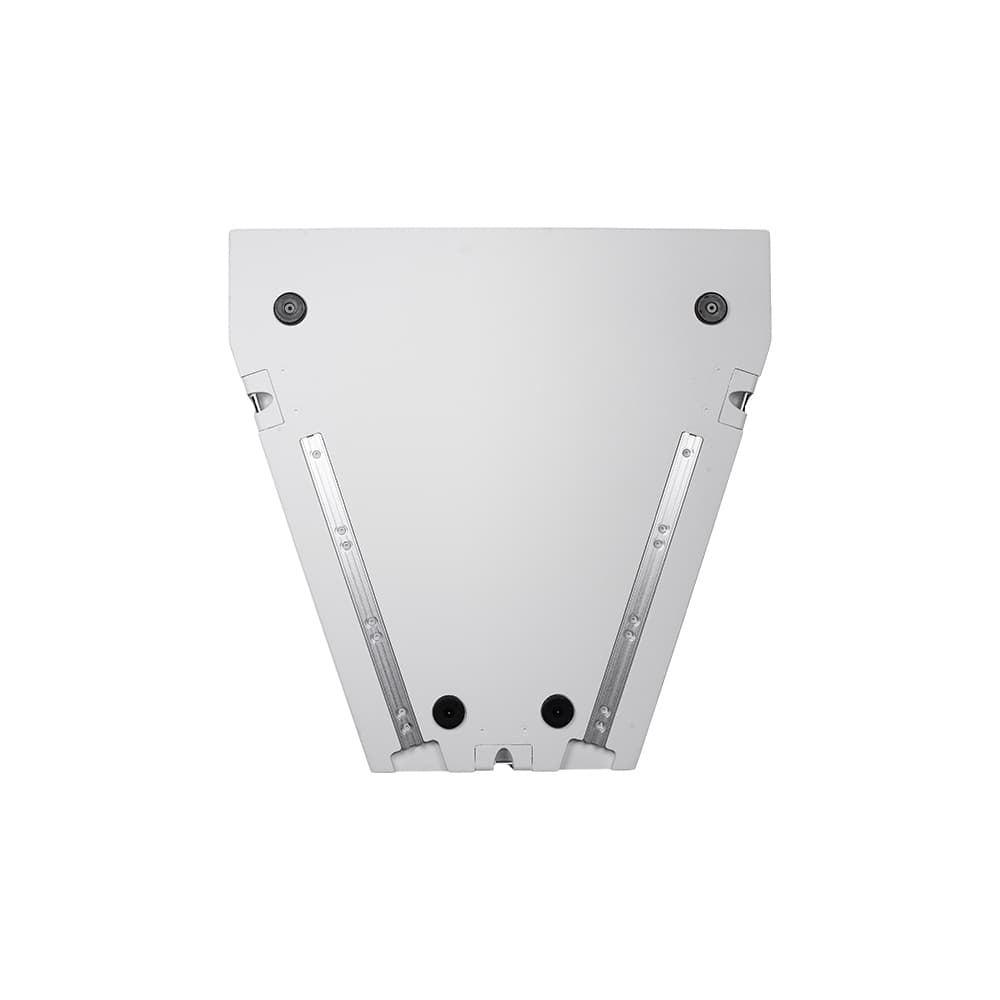

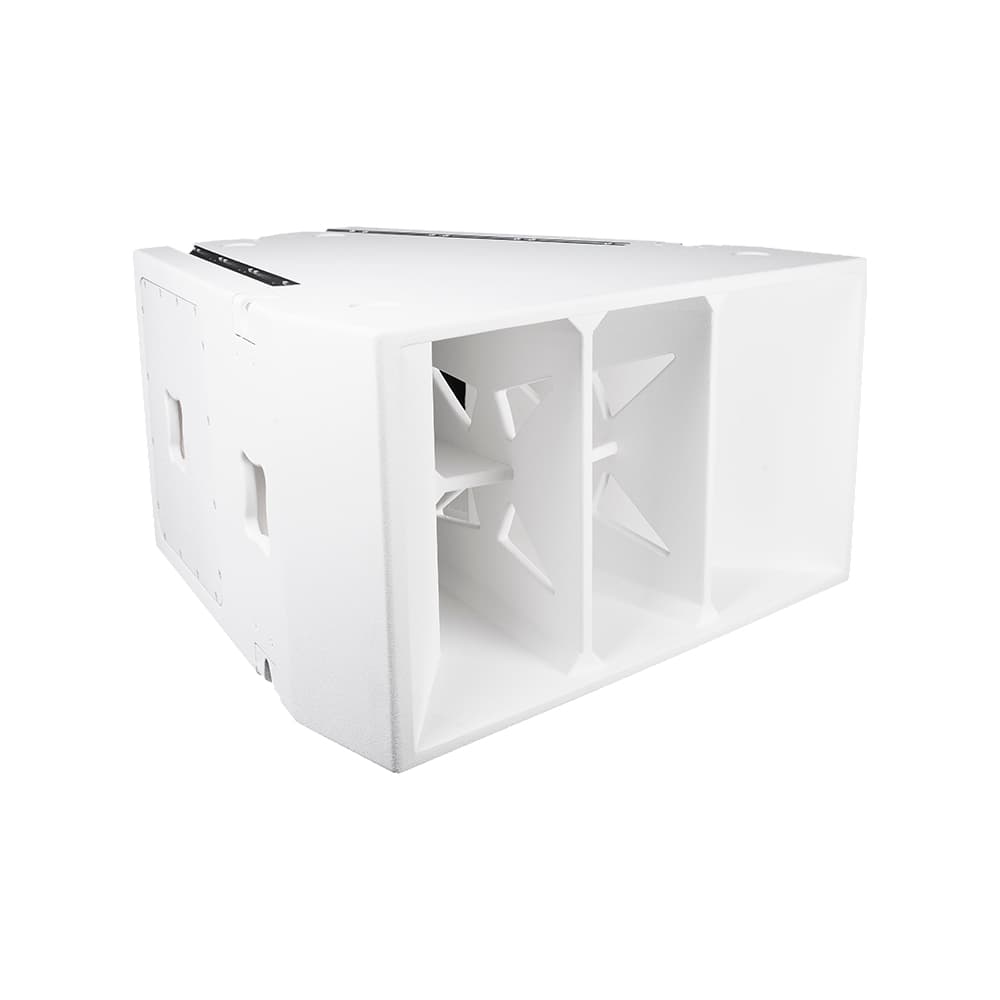

SH212M II
Horn-loaded Dual 12-inch MF Speaker

Downloads

Send your inquiry

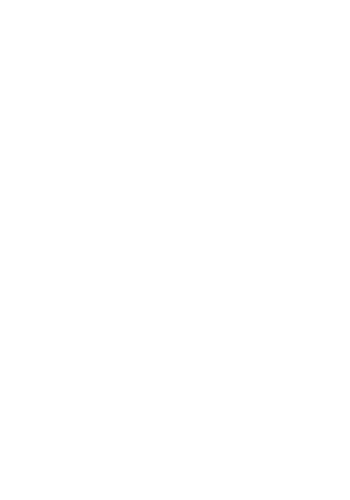

Dimensional drawing

Dimensional drawing

Technical specifications

Frequency Response(-3db)120Hz-1000Hz
Rated Power(RMS)500W
Max SPL @ 1m131dB/137dB (PEAK)
Dispersion (H x V)90° x 95°
Sensitivity 1W @ 1m105 dB
Nominal Impedance (Ohm)4 Ω

Physical specifications

BoxHorn-loaded Dual 12-inch MF Speaker
Woofer2 x 12 inch low-frequency unit
Cabinet/Case Material18mm Plywood White polyimide spray

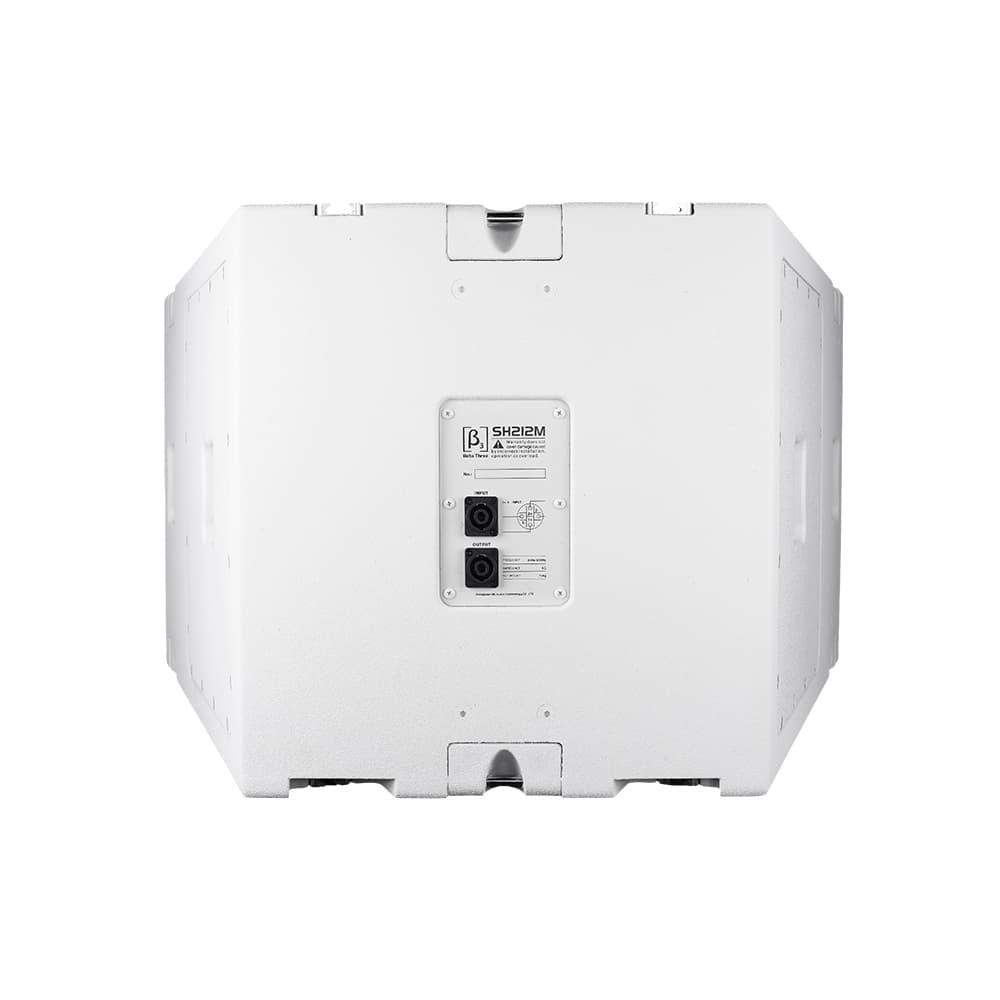

Connector2 x NL4
Dimensions(W x D x H)860 × 860 × 470mm
Package Dimensions(W x D x H):995 × 995 × 615mm
Net weight76.5kg
Gross weight84.5kg
